Our Products

=====================================================================================================================

Ink-jet printer KGK JET CCS3000

Compatible with dye ink, pigment ink, edible charcoal ink!
With reduced running costs, lower case letters, quick-drying ink-jet printer.

Both user-friendly and space-saving design

I adopt 10.4-inch color touch panel that can be removed. Body and touch panel is separable.
Standard model, the control panel cable 3.5m. Economy model 1.3m. (Desorption mechanism for maintenance)
The extensive use of icons good visibility, enabling the operation intuition.
Line up the two types of IP65/IP54 (. IP54 standard model economy model. To IP65) is the cabinet
(CE only correspondence IP65 model) CE, Rohs support
Compared to the running cost reduction conventional machines cut 35% solvent consumption (in the case of 20 ℃ ambient temperature).

Improvement of printing features high potential

– Support (in the case of 40μm nozzle) 0.8mm character height.
1-6 printing stage, and every need high-speed, high-quality printing features (in the case of 40μm nozzle) 2666 characters / s.
(GB2312), user character (JIS first and second), Simplified Chinese alphabet (large / lower case), numbers, symbols, hiragana, katakana, kanji. It supports QR code.

It is equipped with a compact head

Compact print head, printing on objects of various shapes are now possible. The attachment to the narrow space is now available.
　By including “nozzle capping mechanism” and “timer function”, do not have to worry about the nozzle clogging due to the ink dries printing stop after a long period of time.

Exclusion-nozzle capping mechanism – the nozzle clogging

Seal the nozzle at the end of the operation, eliminating the clogging nozzle.
Start-up, automatic cleaning with solvent at the end is not required and I will reduce the solvent consumption.

Specifications :

Model	Standard dye machine	Economy dye machine	Pigment machine	Egg machine
Model name	CCS3000-D	CCS3000-DR	CCS3000-P	CCS3000-EG
Corresponding ink	Dye ink		Pigment ink, charcoal ink	Egg ink
Dust waterproof	IP65	IP54	IP65	IP65
CE Marking	Correspondence	Unsupported	Correspondence	Correspondence
RoHS	Correspondence
Screen size	10.4 in. color LCD / touch panel
Operation panel cable length	3.5m	1.3m	3.5m	3.5m
Corresponding nozzle	40μm/50μm/60 μm		50 / 60	60μm
Character height	0.8 ~ 5mm (40μm nozzle), 1 ~ 10 mm (50μm nozzles), 2 ~ 10mm (60 μm nozzle)
Printing speed [character / sec] (5×5 dot font, character between 1)	2,666 (40μm nozzle), 2,041 (50μm nozzle), 1,780 (60 μm nozzle)
Dots and printing stages	[1-6] stage 5 × 5 [1-4] stage 7 × 5,7 × 8 [1-3] stage 9 × 7,9 × 9,10 × 8,12 × 10 [1-2] stage 16 × 12,16 × 16 [1] stage 24 × 18,24 × 24,32 × 24,32 × 32
Message registration number	Up to 999
Message Registration number of characters	4,096 characters
Character type	(GB2312), user character (JIS first and second), Simplified Chinese alphabet (large / lower case), numbers, symbols, hiragana, katakana, kanji
Date Time (expiration date) printing function	AD, era, date, day of the week, through date, year through (12/24 hour clock), year on time in late week number of the month (variable period setting), AM / PM, character allocation function (year, month, • The allocation function to another character of 4 to 15 digits maximum, minute, second, day, hour, day of the week), shift code
Numbering function	(Can be set in the work number from 1 to 9999 1 count) up to 10 digits, any initial value setting, up / down, carry, (justified or replacement, with a space leading zeros), numbering letter assignment zero suppression function function (can be assigned to non-numeric characters), decimal setting (2-16 decimal)
Distance printing function	10 digits maximum printing length measurement, (insert any character between numbers and number) can be split
Bar code	ITF, NW7, JAN, Code39, Code128
Two-dimensional code	DataMatrix, QRcode
Kana-kanji conversion	Yes
External connection	I / O, signal lights, RS-232C, LAN, encoder, UPS, USB memory
Data entry	Touch panel, RS-232C communication, Ethernet
Communication function	115,200 bps RS-232C 1CH up, Ethernet
Head cable length	3.5m
Dry air source (print head air purge)	8mm or Φ6mm, air source pressure: 0.8Mpa fit tubing OD or less, air flow rate: 10L/Min below, air ventilation set included
Dimensions (W x D x)	Body: 400W × 347D × 548H (excluding protrusions), head: 40W × 199D × 40H
Usage environment	(It is no condensation) 0 ~ 40 ℃, 10 ~ 85%
Power	AC100 ~ 240V 80W
Weight	25Kg
Ground	Class D grounding

Get Catalog HERE (English)

=====================================================================================================================

Ink-jet printer KGK JET CCS-R

I adopt a robust stainless steel housing. The size of the print head, can be printing on the object of a variety of shapes.

We’ve adopted a robust stainless steel enclosure, you can use it without having to worry about even in an environment that uses water. Width of your environment spreads more

As a result of the built-in heater to the print head, it was adapted to the installation temperature environment wide 0 ~ 40 ℃.
Need by having a built-in purge pump, it is recommended to prepare the compressor, etc. The customer is no longer. You can use it in peace in the dusty environment.

Approaching with a jerk to the object!

The size of the print head, printing on objects of various shapes are now possible. The installation is now possible in the small space.

Feature enhancement in the small head!

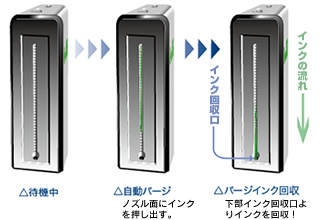

Since it is equipped with a interval mechanism that automatically circulate the ink device also stopped, we do not have to worry about the nozzle clogging due to the ink dries printing stop after a long period of time.

Still look! Easy operation

It is equipped with a full keyboard that investigated thoroughly operability.
WYSIWYG (*) By using the image to display, you can enter easily while checking the print data.

(*) words that omits the “What You See Is What You Get”. The display on a display screen as it is the image of printer output, you can do such as the editing process.

Print Samples :

Specifications:

Printing method	Continuous ink jet printer (charging control method)
Nozzle array	1 nozzle
Ink	■ Black CN1 black mild solvent-based ■ CN5 black-A1 (500ml) Super Strong fixing black ink ■ CN505 black (500ml) Super Strong fixing black ink (oil resistant) ■ CN 101 black (500ml) black ink
Ink color	Black
Character height	1 ~ 10mm
Character type	(JIS first and second), Simplified Chinese, Korean character (however, not be used with hiragana, katakana, and kanji) alphabet (large / lower case), numbers, symbols, hiragana, katakana, kanji
Font species	(Japanese, Chinese) Ming-Gothic
Connection heads	1 head
Print speed	(When 5 × 5-dot font, one between characters) 1960 characters / s
Dots and printing stages (in dots)	[1-4] stage 5 × 5 [1-3] stage 7 × 5,7 × 8 [1-2] stage 9 × 7,9 × 9,10 × 8,12 × 10 [1] stage 24 × 18 , 24 × 24,16 × 12,16 × 16
Data entry	Full keyboard, RS-232C communication
Display device	240 × 64 dot LCD
Date Time (calendar) printing function	AD, era, year, month, day, through date, year through (12/24 hour clock), year on time in late week number of the month (variable period setting), AM / PM, character allocation function (year, month, · It can be assigned to a different character of single-digit minutes and seconds date and time.)
Numbering function	(Can be set in the work number from 1 to 9999 1 count) 8 digits, any initial value setting, up / down, carry, (replaced by spaces leading zeros) zero suppression character (non-numeric numbering letter assignment function can be assigned to)
Ink jet possible direction	(Up, down, side) in all directions
Printing object	Paper, metal, plastic, wood, glass, etc. (egg ” CCS-EG “, for the fruit” CCS (fruit print specification) “for details)
Registration number of messages	50 messages maximum
Maximum number of characters per message	Up to 512 characters
Bar code printing	ITF, code39, NW-7, JAN, code128
External interface	RS-232C
Usage environment	RH (no condensation) 0 ℃ ~ 40 ℃ 10 ~ 80%
Power supply: for domestic	AC100V, 50/60Hz, 60W (80VA), two-pole grounding type attachment plug
Power supply: for export	AC220V, 50/60Hz, 70W (100VA), GB standard attachment plug AC230V, 50/60Hz, 70W (110VA)
Air source	Unnecessary
Nozzle diameter	50μm, 40μm

Get Catalog HERE (English).

=====================================================================================================================

Ink-jet printer KGK JET HQM

I can choose ink color, colorful print pattern!

It is equipped with a 128 dot-house development, the piezo print head of 32 dots. Can be controlled at the same time up to 4 heads per controller! In easy-to-read large screen touch panel controller, the operation is easy anyone.

Beautifully clear, 128 dot piezo print head developed in-house, and prints letter, also BMP data.

I can be printed clearly to upper case of 64.5mm character height from small Chinese characters. Also, I can be printed easily BMP data of Caremark or logo.
Amount of information of the print is large, character and line spacing also can be placed freely, printing inspection by the camera or the like will also be easy.

I adopt a 10.4 in. VGA color LCD touch panel to make it easy for you to use anyone in ease of operation. Controller is a simple compact design also store inside the enclosure. You can control up to four head up to one controller, both sides, multi-stage printing of the box is possible. You can then focus on operability with respect to soft surface, soft and inspiring design intuitive operation, the first person also make it easier, operations such as editing of the print data. LAN feature is standard equipment. Data can be backed up easily on a PC card.

32 dot piezo print head, is printed in high-speed high-quality character.

And mounting angle of the print head, is done in the input settings to change the character height.
It can be printed instead of the characters that are configured as a valve ink jet printer in “points”, is composed of a “surface” crisp character close to printing.
In addition, it is also available to the conveyor line speed in excess of 100m / min.

I have adopted the large 10.4 in. VGA color LCD touch panel to the controller.As a result, I became easier to check the print layout and print content. To match the usability, touch panel is angle adjustable in 5 ° increments up to 0 ~ 45 °. The operation panel, I can be done smoothly with stylus.

Print Samples :

128 Dots Piezo

32 Dots Piezo

Specifications :

rinting method	Piezo ceramics drive on-demand
Nozzle array	128 dot	32 dots
Ink	Dye-based ink, pigment ink
Ink color	Black	Black, blue, red, green
Character height	(Semi-fixed to rotate the head) 1 ~ 64.5mm	(Semi-fixed to rotate the head) 1 ~ 40mm
Character type	Alphanumeric symbols, hiragana, katakana, JIS first and second level Kanji
Font species	Gothic, Ming, OCR character, Oji
Connection heads	1-4 head (head cable up to 20m)
Maximum supported line speed	About 5 ~ 10 [KHz] ※ printing conditions, by the use environmental conditions
Printing number of stages	(The line can be further increased in use as soon as the font size) 20 line by line –
Data entry	LCD touch panel
Date Time (calendar) printing function	(24/12H), minutes, seconds, day, week / date number, AM / PM, offset setting, character allocation function year (Western / Japanese calendar), month, day, hour
Numbering function	8 digits, up down, repeat, increment, zero suppression, half / double-byte character selection
Ink jet possible direction	Side, under	Side, below, on
Printing object	Cardboard, paper, wood, and other porous material
Display device	10.4 in. color LCD touch panel
Registration number of messages	However 100-1000, it depends on the media you want to save
Maximum number of characters per message	Unlimited
Print data creation dedicated editor	Numbering, clock function settings, and paste bitmap file
Bar code printing	ITF, CODE39, JAN, QR	ITF, CODE39
External interface	PCMCIA (Type Ⅱ), Ethernet (10Base-T/100Base-TX), RS232C/422, dedicated I / O, encoder (line receiver)
Usage environment	(Non-condensing) 5 ~ 35 ℃ 10 ~ 80% RH)
Power	AC100V ± 10%, 50/60Hz, 300W (MAX)
Air source	None

Get Catalog HERE (English )

=====================================================================================================================

HQ 500 inkjet printer KGK JET

Piezo ink jet is high-quality inkjet printer by. Ultra-high resolution of 500 dots, I can print text or graphics up to 70mm character height. Because I use the liquid pigment ink, and has realized the robust adhesion and sharp edges. For this reason, I also suitable, such as printing of bar code. Because you are using the computer system to control, such as changes to create and configure the print data is easy. Because the print settings can be changed by an external signal, it is quite useful in high-mix low-volume production. Compared label, the pre-printing, significantly reducing the running cost.

Microsoft Windows is the operating system ^(R) adopted, I can operate a PC familiar environment. Because it is our original software development, it is possible to respond quickly.Graphic also import freely, you can manipulate them while checking the actual print data of 500 dots. Save the file to print data that has been set, the call at any time, it is possible to print and updated. Directly, I can change the print data of JET HQ500 from the computer screen. By an external input, also to change the product on the line, it will be addressed in real-time.

HQC	HQ3200	HQ2100
Printing method	Piezo ceramics drive drop-on-demand
Nozzle array	32 nozzle 2 hole / nozzle	32 nozzle hole 7 / nozzle	32 nozzle 2 hole / nozzle
Ink	Dye-based ink
Ink color	Black, red	Black	Black, red
Character height	Slant control when: 1 ~ 20mm vertical time: 25.4mm	Slant control time: 5 ~ 40mm vertical when: 46mm	Slant control time: 2 ~ 20mm vertical not
Print speed	Up to 200m / min (concentration 1) ~ 31m / min (concentration 9)	Up to 200m / min (concentration 1) ~ 67m / min (concentration 9)	Up to 120m / min (concentration 1) ~ 20m / min (concentration 9)
Font species	16 × 16,32 × 32 (Gothic)
Connection heads	1 head per controller
Maximum supported line speed	Up to 200m / min		Up to 120m / min
Resolution	Channel conversion: 32 dots / 1 inches (25.4mm) = 32dpi hole equivalents: 64 Hall / 1 inches (25.4mm) = 64dpi
Printing number of stages	Up to 2 levels
Data entry	Keyboard
Date Time (calendar) printing function	Year, date, time
Numbering function	8 digits, up down, repeat count, increment setting
Ink jet possible direction	Side
Printing object	Cardboard, paper, wood, and other porous material
Display device	LCD
Registration number of messages	Thirty
Maximum number of characters per message	48
Bar code printing	Improper
External interface	Backup / Restore of RS-232C data (real-time communication impossible) upgrade of software)
Usage environment	5 ℃ ~ 35 ℃, (non-condensing) 10 ~ 80% RH
Power	AC100V ± 10%, 50/60Hz 40W or less	AC100V ± 10%, 50/60Hz 50W or less	AC100V ± 10%, 50/60Hz 40W or less
Air source	None
